HDPE Polyethylene Underground Plastic Water Gas Supply Pipeline Making Machine
Product Description
Welcome to learn about our high-performance HDPE water/gas supply pipe production line. This production line is specially designed for manufacturing high-quality PE80/PE100 pipes ranging from Ø20mm to Ø2000mm. It is an ideal choice for applications such as municipal water supply, agricultural irrigation, urban gas transmission, and industrial pipe networks. Integrating cutting-edge extrusion technology, efficient single-screw extruders and intelligent control systems, it ensures high precision, excellent durability and stable operation in pipe production.
Technical specification
| Model | Pipe diameter | Screw | KiloWatt | Output |
| SPEG-110 | 20-110mm | SJ75X33 | 180kw | 350kg/h |
| SPEG-250 | 63-250mm | SJ90X33 | 280kw | 500-1000kg/h |
| SPEG-630 | 315-630mm | SJ120X33 | 522kw | 1000-1200kg/h |
| SPEG-1200 | 710-1200mm | SJ150X33 | 680kw | 1000-1600kg/h |
| SPEG-2200 | 1000-2200mm | SJ150X33 | 1200kw | 2000-2500kg/h |
Applications
• Municipal water distribution networks
• Natural gas transmission pipelines
• Geothermal heating systems
• Landfill leachate collection pipes
• Industrial chemical transportation
• Agricultural irrigation systems
Production Line Details
Technological processes
[Feeding&Drying] → [Extrusion Molding] → [Mold Shaping] → [Cooling] → [Traction and Cutting] → [Marking]
Main equipment list
-1set Vacuum loader
-1set Hopper dryer
-1set High-effeciency single screw extruder
-1set 25/25 single screw extruder for mark line
-1set Vacuum calibration table
-2/4 set Water spraying tank
-1set Hauling machine
-1set Cutting machine
-1set Stacker

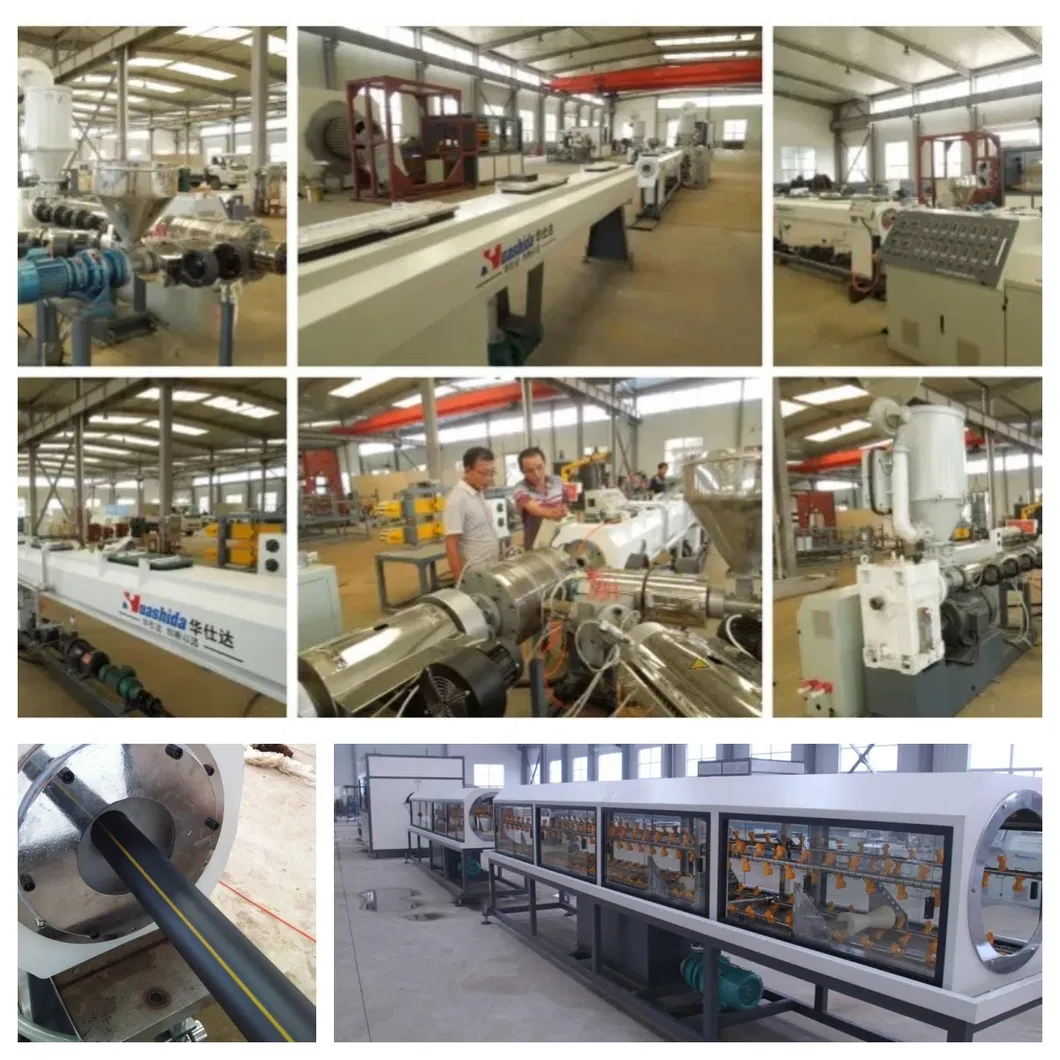

Equipment detai photos
Feature
√ High-efficiency extruders ensure excellent plasticizing effects and large extrusion volumes.
√ The spiral die head achieves low-temperature, low-pressure, high-efficiency mixing and stable production.
√ The unique water film and water ring system ensures the precise size of the pipe at high speeds.
√ The PLC touch interface facilitates the setting and monitoring of all parameters.
√ Advanced extrusion technology effectively reduces the overall production cost.
Company Profile
Qingdao Huashida Machinery Co., LTD, is a manufacturer of series of plastic pipe machines, municipal pipe machines, pipe insulation&anticorrosion machines, and pipe jointing&anticorrosion materials, with 21 years of production experience.
Our main products are:
1. HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)
2. Rigid pre-insulated pipe Production Line
3. Flexible pre-insulated pipe(PERT) production line
4. Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
5. Steel pipe derusting line
6. PE pressure pipe/Water Gas supply pipe production line
6. PP/PE plastic board/sheet/geomembrane production line
7. NBR PVC Thermal insulation tube/plate production line
8.Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun(extruder), PE PP welding rod.
We have been working with more than 400 overseas customers and exporting our products to Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria and other countries.
Factory overview

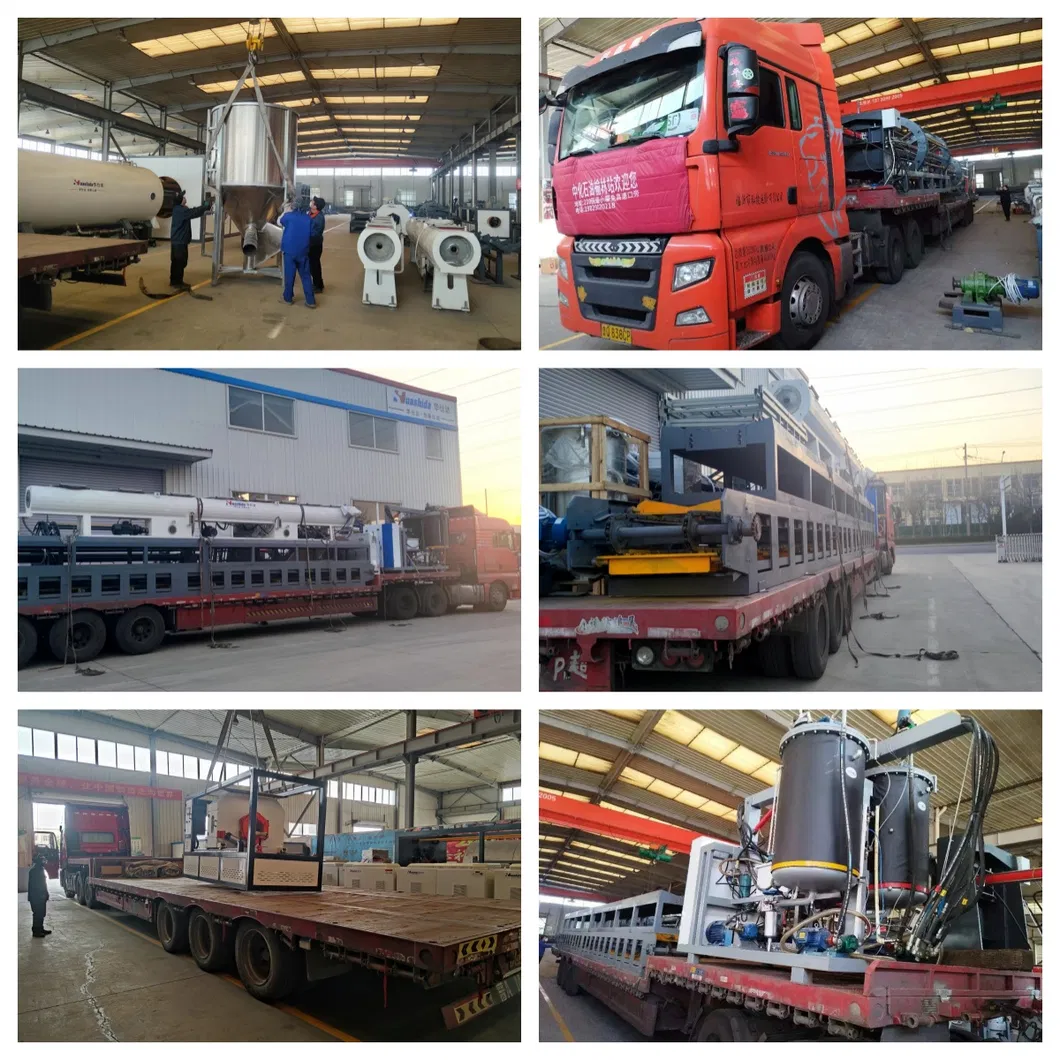

Delivery
Exhibition
|
|
