PVC/NBR/EPDM Foaming Aircondition Flexible Insulation rubber pipe machinery
The Rubber Foam Insulation Tube/Sheet Production Line is developed using advanced technology. This line produces rubber foam insulation pipe (commonly known as sponge pipe) and rubber and plastic insulation pipe. The equipment is mainly composed of an extruder, die mold, infrared radiation heating furnace, foam heating furnace, traction, and automatic cutting equipment. Its products are widely used in air conditioning insulation pipe, edge tube plate, high-grade handle, fitness equipment sheath, and other fields.
Materials for production:
NBR (nitrile-butadiene rubber), PVC (polyvinyl chloride) and other accessory materials.
| Model | XSFP-1200 | XSFP-1500 |
| Extruder | XSJ-120/20 | XSJ-150/20 |
| Extruder power | 110kw | 160kw |
| Production capability | 150-180m3/d | 200-240m3/d |
| Product specification | Max width 1200mm, Tube dia 10-114mm,thickness 6-25mm | Max width 1500mm, Tube dia 10-114mm,thickness 6-25mm |
| Installed capacity | 750kw | 800kw |
| Air | 0.4m3/min,>0.5mpa |
Overall dimensions
(Length*Width*height) | 65*4*3.5m | 80*4*3.5m |
| Operators | 6-8 people |
| Lead time | 90 days |
Production Equipment & Process
Equipment composition:
-Rubber cutter
-Internal mixer
-Bucket elevator
-Open mill
-Rubber extruder
-Transition roller
-Infrared foaming stove
-Hot air foaming stove
-Tractor and cutter
Production process:
Internal mixing materials - Open rolling - extrusion - foaming - cooling- cutting
High extrusion speed
High degree of automation and security performance
Low maintenance cost
Low power consumption
Continuous vulcanization
Less labour required
Long durability
Lifelong technical support
Rubber foam insulation pipe/sheet boasts such advantages as closed-cell structure, good aging resistance performance, low heating conductivity, moisture resistance factor, good fireproofing, easy installation.
Ther are widely used in the following fields:
1.Thermal insulation of pipes, vessels and other technological containers in industrial installations;
2.For cold and hot water supply and heating systems;
3.Coating of bodies and machine parts to reduce noise and vibration;
4.For freezers of various sizes.
Product Tags:
|
|

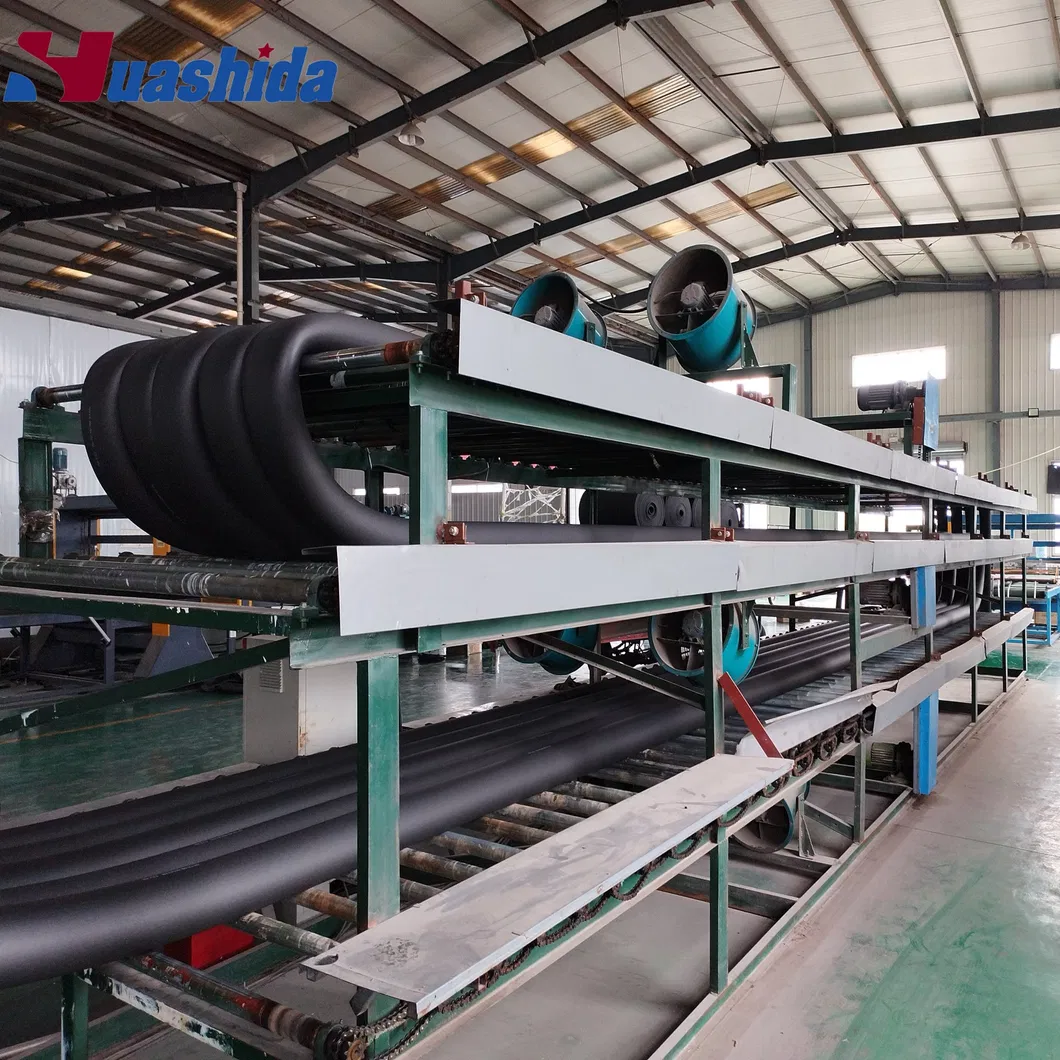

PVC/NBR/EPDM Foaming Aircondition Flexible Insulation rubber pipe machinery Images
|
